5V 2 Channel Relay Module USB Control

 5V 2 Channel Relay Module USB Control
 5V 2 Channel Relay Module USB Control
 5V 2 Channel Relay Module USB Control
 5V 2 Channel Relay Module USB Control
5V 2 Channel Relay Module USB Control
  • Stock: 10
  • Brand: Tiah
  • Model: DZD004815
  • Weight: 60.00g
1,700.00DA
Ex Tax: 1,700.00DA

Description:

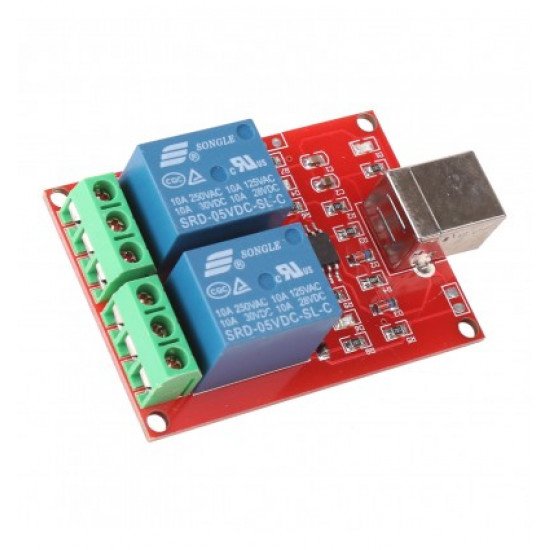

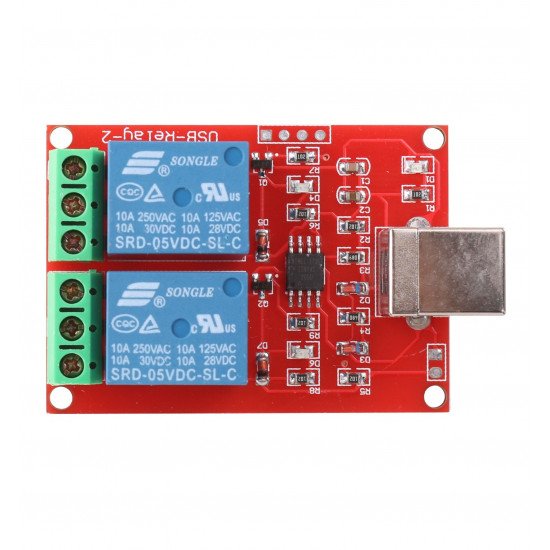

This is USB controlled relay Board with 2 channels. It's used the HID technology, so no need to install any driver in windows system and you can easy to use. We also provide an application and the C++ develop library that you can easy to integrate this module to your project.
The relay can control the maximum voltage 250V, 10A AC load and 30V, 10A DC load
Support WIN7, XP 32 -bit systems


This module can be used:
-Home automation
-Robotics Contorl
-Control doors and windows via windows system
-Contorler power supply
PCB SIZE: 56.5mm*40mm


Module Parameter:

Relay Type

Songle 5V Relay

Relay QTY

1

Contack Type

NC/ COM/ NO

Input Voltage

DC 5V

Input Current

》300mA



Application:

1. Supply the application code (Green indicates that the relay is closed , the red disconnect)
2. Supply C++ lib and dll for building your own project (include usb_relay_device.dll, usb_relay_device.lib, usb_relay_device.h).
Open the device , the software automatically obtain the current working state relay
