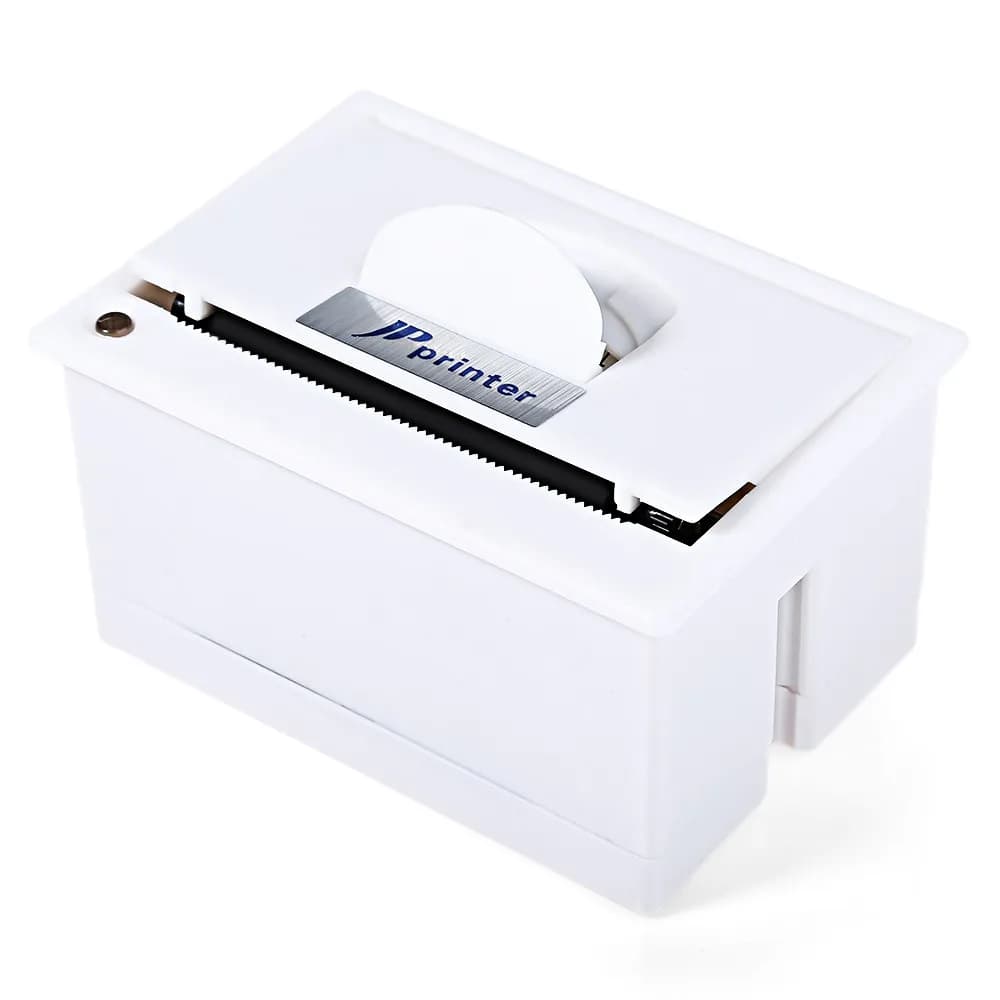

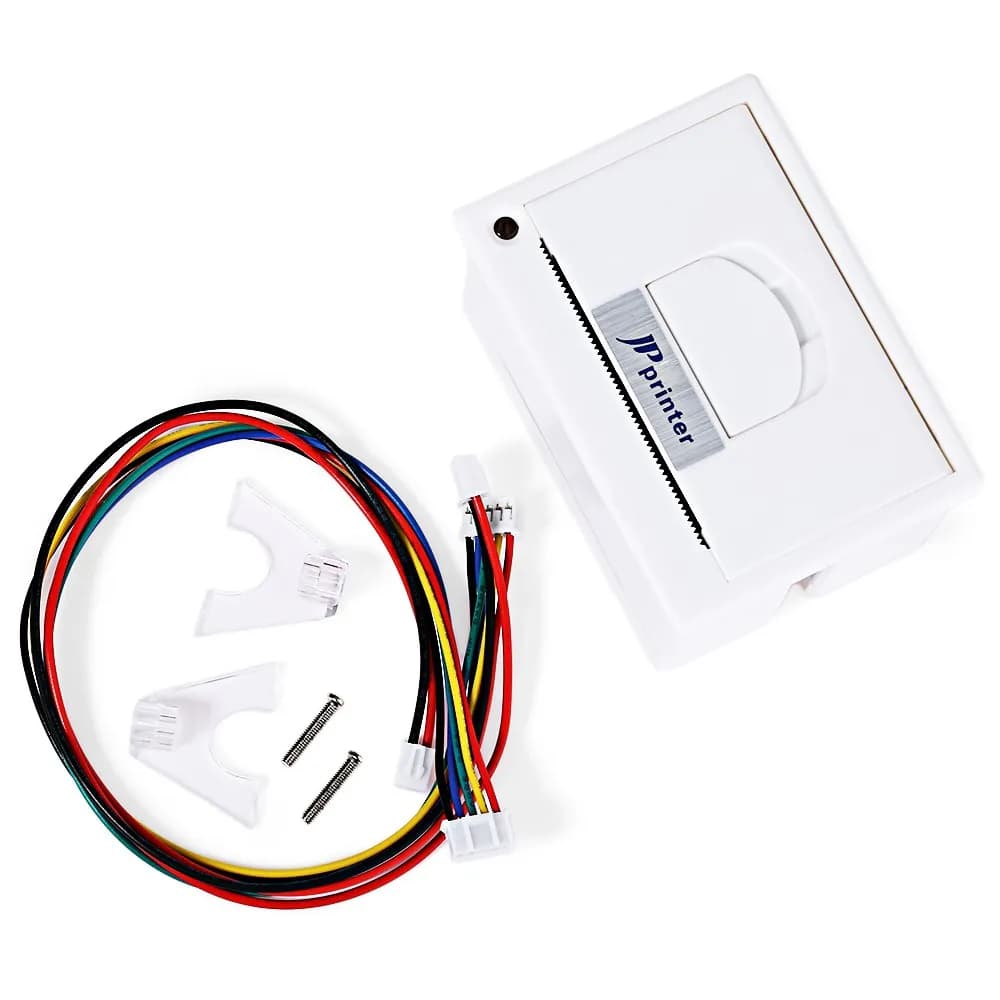

JP QR204 58mm Micro Embedded Receipt Thermal Printer

Main Features: ● Beautiful appearance with mini shape, practical and convenient ● Easy paper structure and replace the paper body from front panel, easy for operation ● Low noise thermal printing, do not brother the others, creating quiet environment ● Optional different interface ● Easily embedded in a variety of different instruments ● Supports ESC / POS print instruction set Specifications: ● Printing method: Thermal ● Resolution: 8 dots / mm , 384 dots / line ● Effective print width: 48mm ● Character set: ASCII, GB2312-80 ( Chinese ) ● Print fonts: ANK: 5 x 7, Chinese: 12 x 24, 24 x 24 ● Paper type: Thermal paper ● Paper width: 57.5 +/- 0.5mm ● Roll diameter: 30mm ( max ) ● Reliability: Mean Cycle Between Failure ( MCBF ) 500 million lines ● Interface: Serial ( RS-232, TTL ), parallel ● Embed depth: 43mm ● Power supply ( Adapter ): DC 5V - 9V ● Installation port size: 77 x 53mm ● Operating temperature: 5 Deg.C - 50 Deg.C ● Humidity: 10 percent to 80 percent ● Storage temperature: -20 Deg.C - 60 Deg.C ● Storage humidity: 10 percent to 90 percent Print speed: 50 - 85mm / s Package weight: 0.179 kg Product size: 8.20 x 5.80 x 4.40 cm / 3.23 x 2.28 x 1.73 inches Package size: 9.00 x 6.50 x 5.00 cm / 3.54 x 2.56 x 1.97 inches
