Laser Tree LT-40W-AA module 40W 12VDC

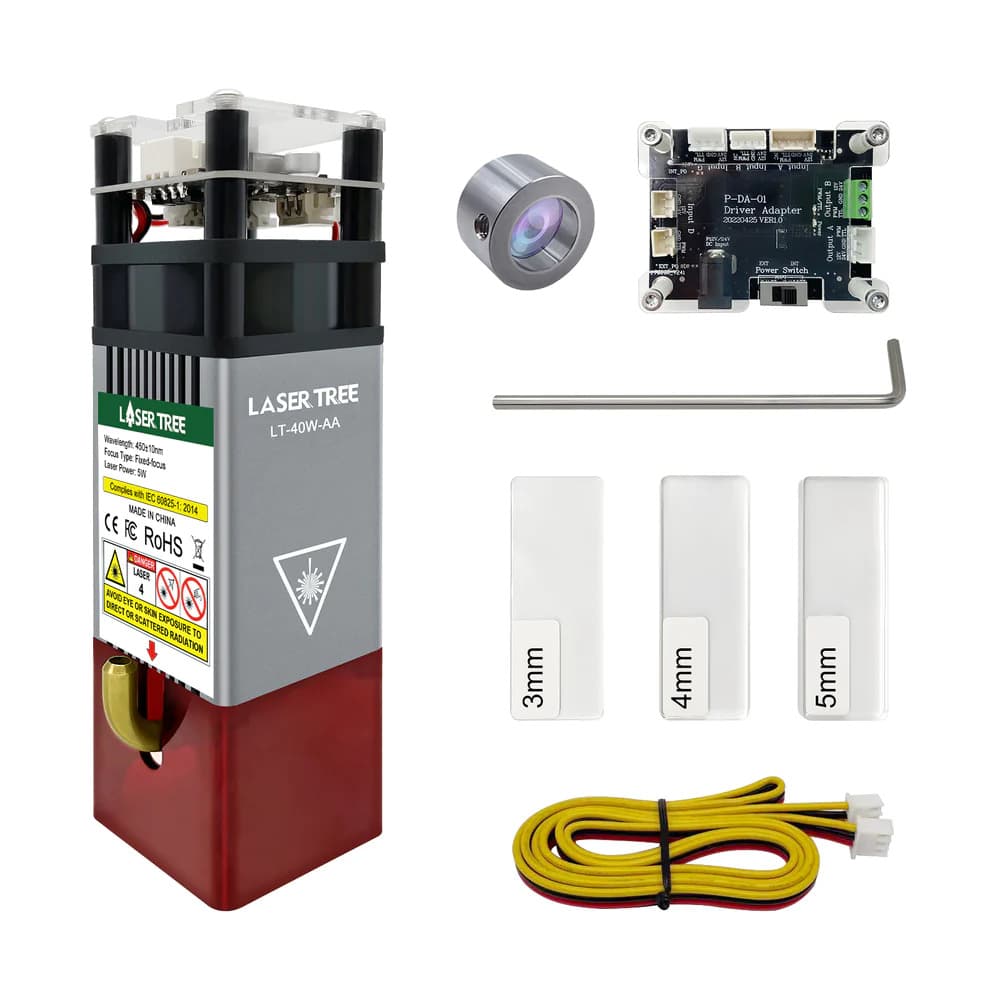

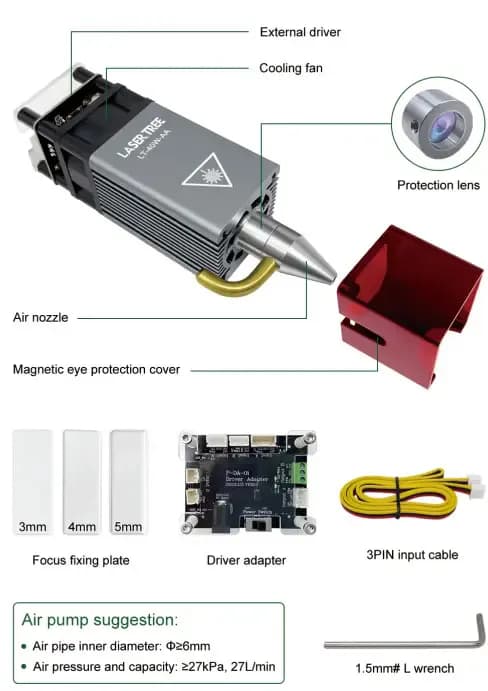

Description : The total power of the Laser Tree LT-40W-AA module is 40 W, and the optical power of the laser is 5 W. The point of the laser beam in focus is 0.03*0.13 mm in size. Package Contents: Laser Tree LT-40W-AA module Adpater control board Spacers for adjusting the focus distance depending on the thickness of the material Magnetic housing of the laser for eye protection Protective lens 3-pin input cable Advantages of the Laser Tree LT-40W-AA module AIR FLOW: Equipped with “L” type high pressure air nozzle to improve cutting efficiency and reduce burn marks. BEAM COMPRESSED SPOT: The result is a 0.03*0.13 mm laser spot in focus. PROTECTIVE LENS DESIGN: When the lens is damaged or after prolonged use, it can be disassembled and replaced to restore cutting ability. This greatly extends the lifetime of the laser. WIDE COMPATIBILITY: The laser module is compatible with many brands of laser engraving and cutting machines, such as ATOMSTACK, ORTUR, NEJE, Sculpfun, etc. MAGNETIC EYE PROTECTION: With a protective cover, it can effectively filter out blue light when engraving or cutting, providing safety and convenience. Specifications Model LT-40W-AA Optical power 5 W (± 0.5 W) Input voltage and current 12VDC 1.8A Wave lenght 450 nm (± 10 nm) Focal length 45 mm Spot size of the laser beam 0.03*0.13 mm PWM 5 V Fan rotation speed 9000 RPM Interface XH2.54-3P Operating temperatures 0-60 °C Module size 40x40x141 mm Weight 255 Mr Usage Engraving or cutting Instructions for use LT-40W-AA_User_Manual
