Mini V Gantry Plate™
SKU: DZD002353
DZD 1,000.00
Description :

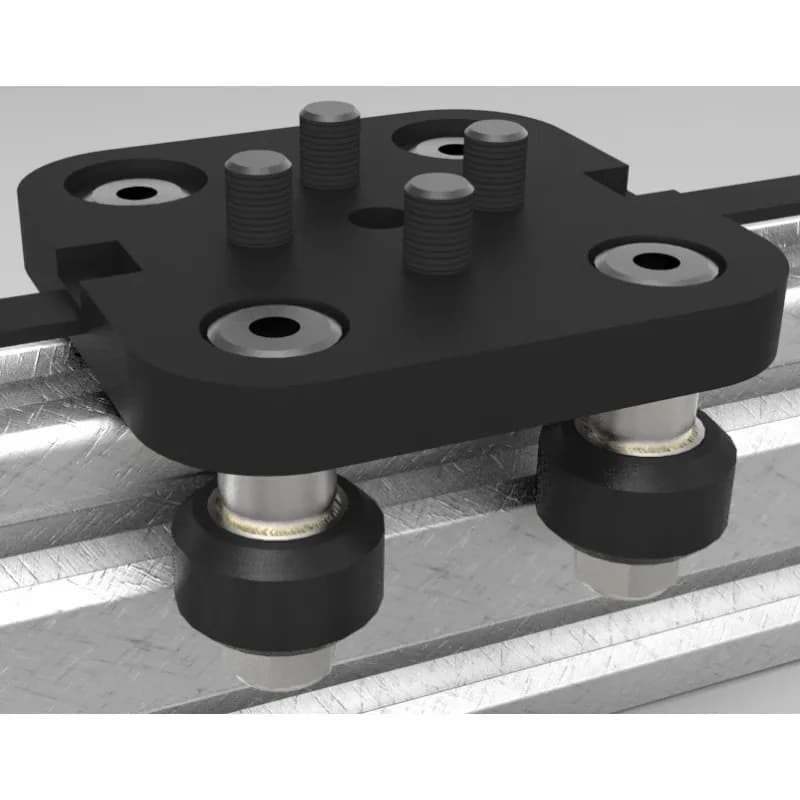

Mini V Gantry Plate
This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels and the Xtreme Mini V Wheels.
It's super strong and has a small form factor.
This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!
Part Details
Dimensions: 50 x 50 x 6.35mm 'thick'
6063-T6 Aluminum Black Anodized Brushed Finish
Belt loop side notched for 1/4" belt
Recessed Screw holed for post flush mount
Download Models to use in your builds
Belt Driven mini V example models

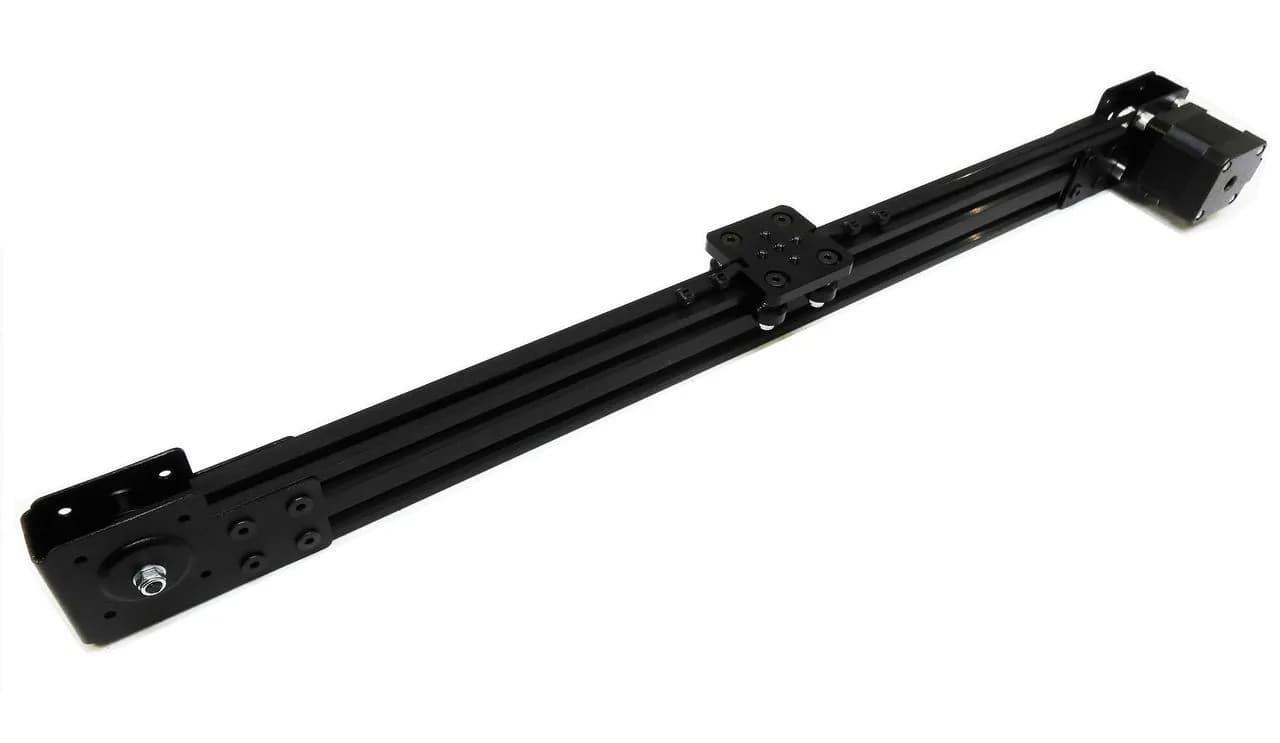

Example Build
Models available in SketchUp and SolidWorks and other CAD formats
Read full descriptionNationwide ShippingEasy ReturnsSecure CheckoutAuthentic product
Share
In StockIn StockAvailable: 28
Quantity
Estimate shipping
Select your wilaya and city to see estimated delivery rates.
Description
Product details
Description :
Mini V Gantry Plate
This is the awesome little plate for the Mini V linear guide system using the OpenBuilds Mini V Wheels and the Xtreme Mini V Wheels.
It's super strong and has a small form factor.
This plate has the mounting pattern to allow for end to end mounting that makes up the Mini V system. This opens the door to endless machine creation!
Part Details
Dimensions: 50 x 50 x 6.35mm 'thick'
6063-T6 Aluminum Black Anodized Brushed Finish
Belt loop side notched for 1/4" belt
Recessed Screw holed for post flush mount
Download Models to use in your builds
Belt Driven mini V example models
Example Build
Models available in SketchUp and SolidWorks and other CAD formats
