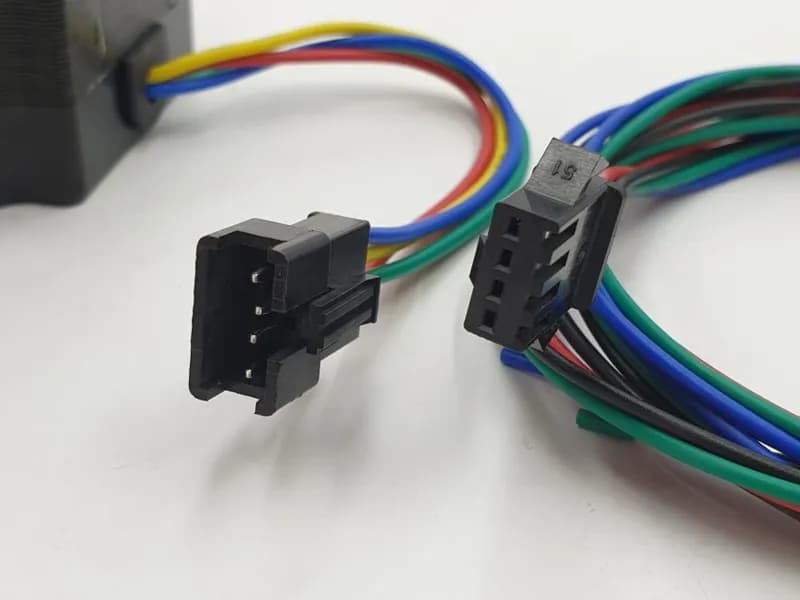

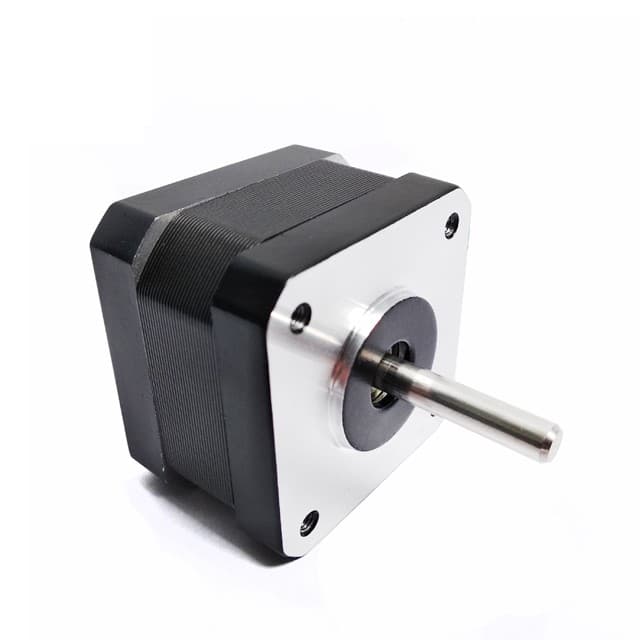

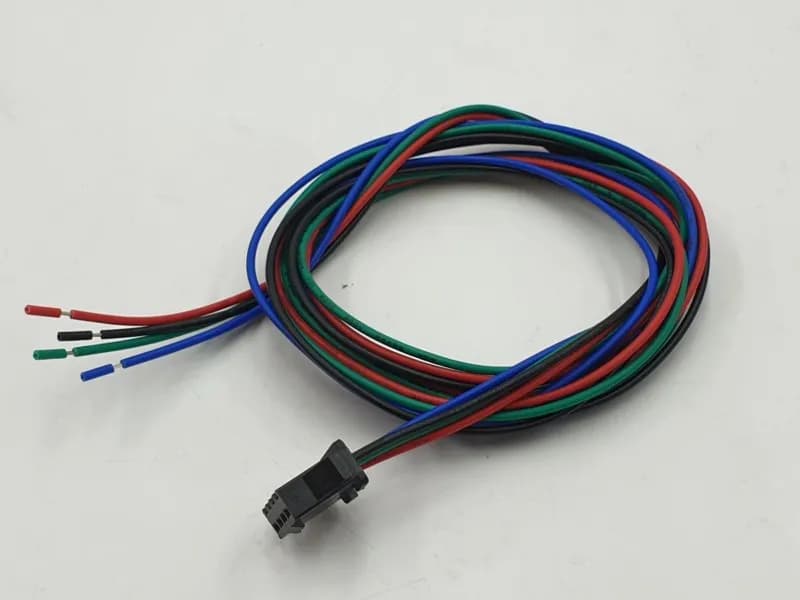

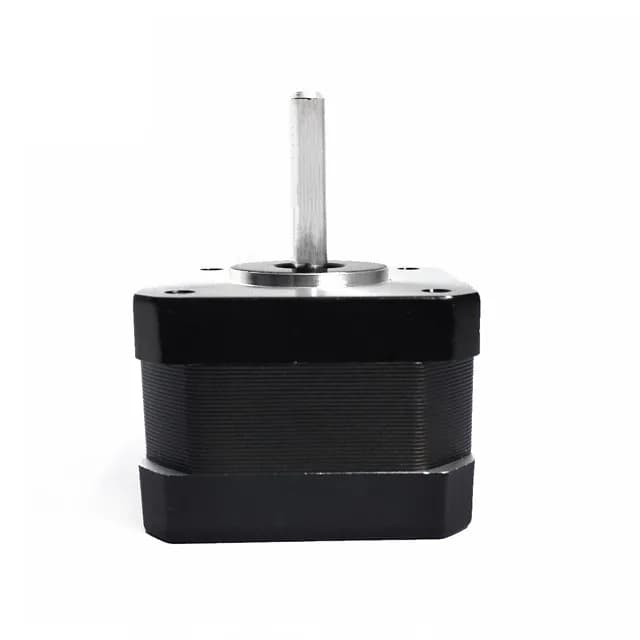

NEMA17 Stepper Motor With Connector & 1m Cable - 42HS34-1704

Product Detail: Nema17 42HS 2 phase 1.8° hybrid stepper motor Item Specifications Step Angle Accuracy ±5% Resistance Accuracy ±10% Inductance Accuracy ±20% Temperature Rise 80℃ Max Ambient Temperature -20℃～+50℃ Insulation Resistance 100MΩMin.500VDC Dielectric Strength 500VAC for one minute Shaft Radial Play 0.02Max.(450g-load) Shaft Axial Play 0.08Max.(450g-load) Model No Step Angle (°) Rated Voltage (V) Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque (g.cm Max) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight (Kg) 42HS34-1704 1.8 2.2 1.7 1.3 1.8 2.8 200 34 34 4 0.22 Above only for representative products, products of special request can be made according to the customer request.
