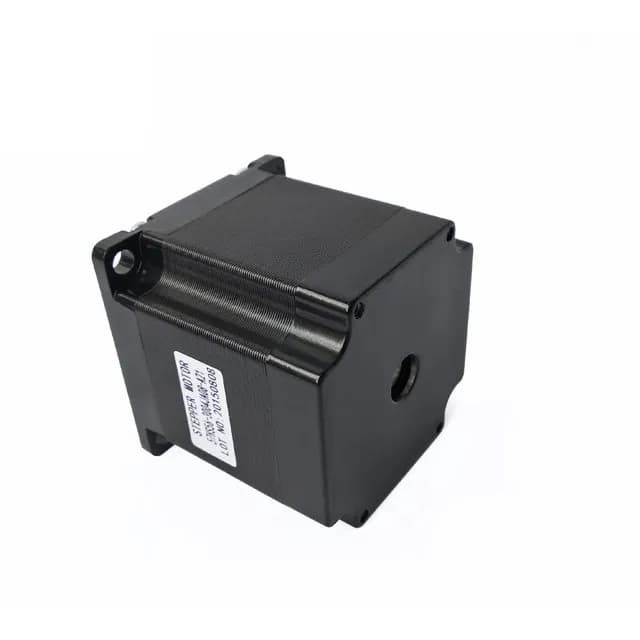

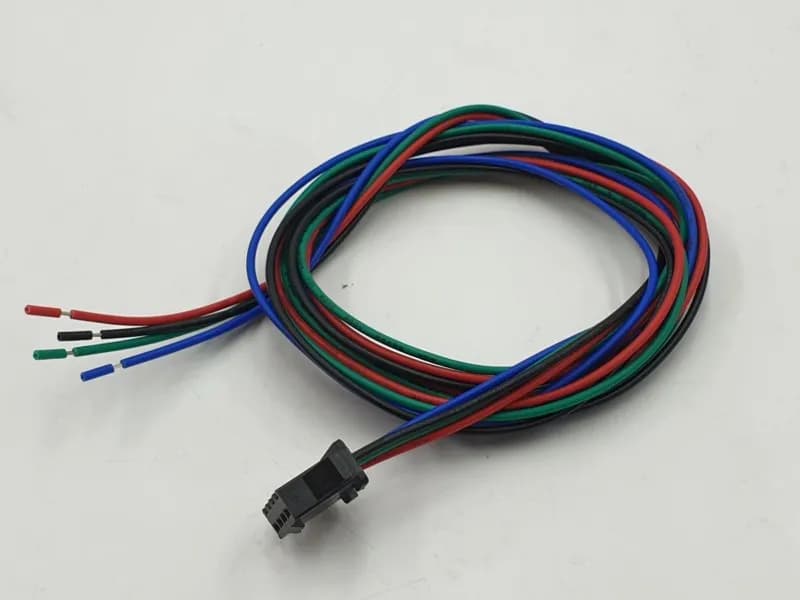

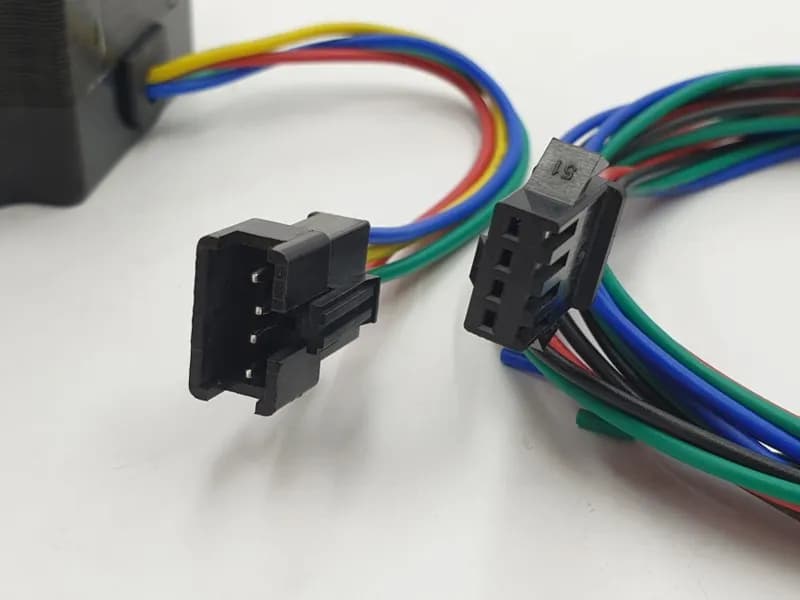

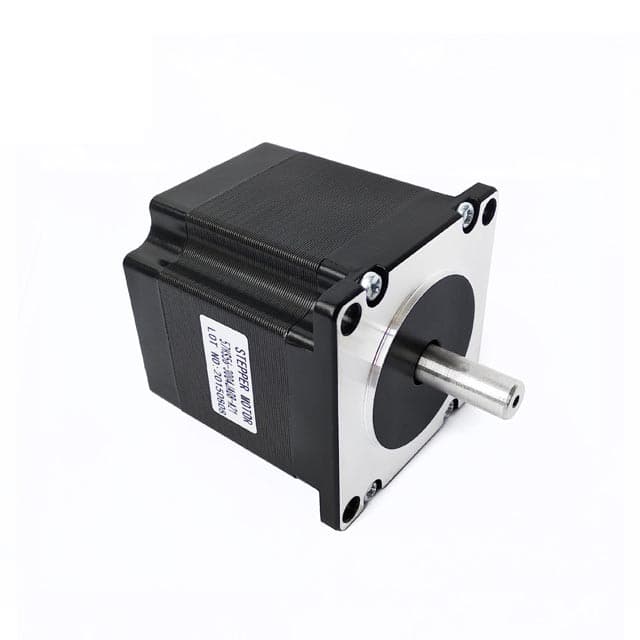

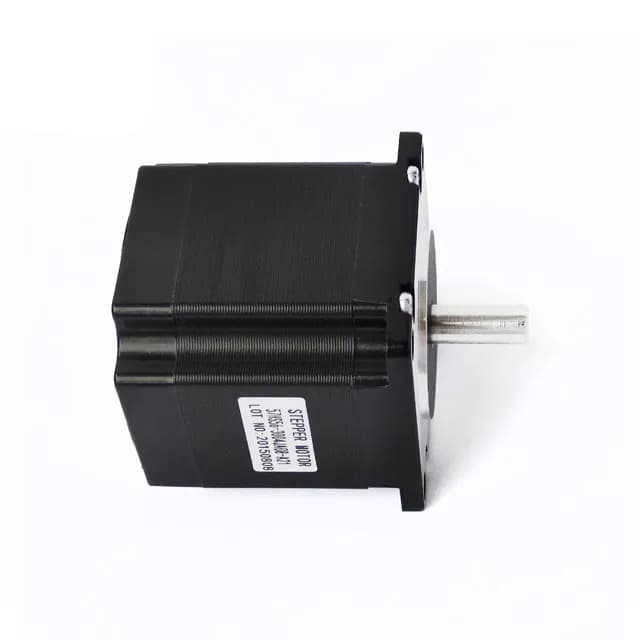

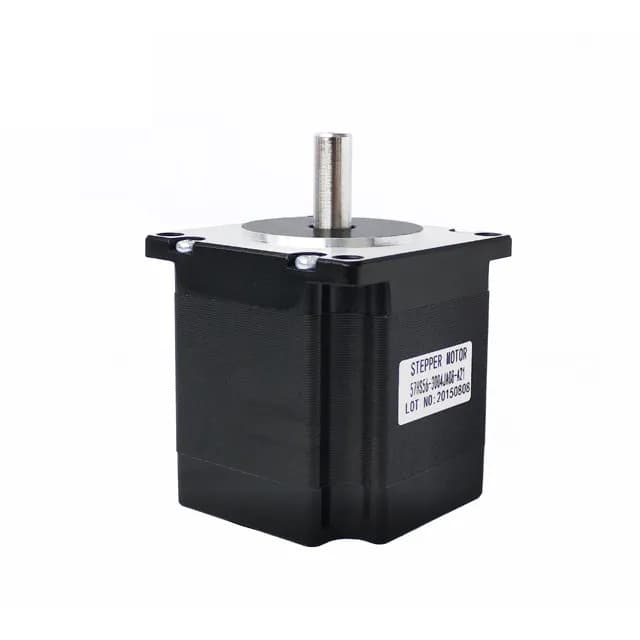

NEMA23 Stepper Motor With Connector & 1m Cable - 57HS56-3004

Product Detail: Nema23 57HS 2 phase 1.8° hybrid stepper motor Item Specifications Step Angle Accuracy ±5% Resistance Accuracy ±10% Inductance Accuracy ±20% Temperature Rise 80℃ Max Ambient Temperature -20℃～+50℃ Insulation Resistance 100MΩMin.500VDC Dielectric Strength 500VAC for one minute Shaft Radial Play 0.02Max.(450g-load) Shaft Axial Play 0.08Max.(450g-load) Model No Step Angle (°) Rated Voltage (V) Rated Current (A) Phase Resistance (Ω) Phase Inductance (mH) Holding Torque (Kg.cm) Detent Torque (g.cm Max) Rotor Inertia (g.cm²) Motor Length (mm) Leads No. Motor Weight (Kg) 57HS56-3004 1.8 2.85 3 0.95 2.8 12 400 300 56 4 0.7 Above only for representative products, products of special request can be made according to the customer request.
