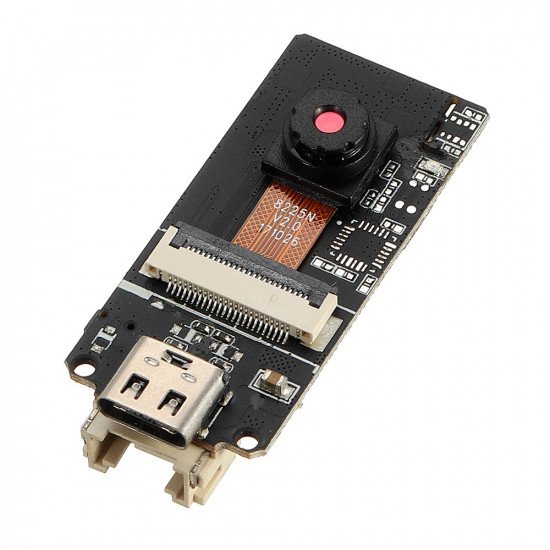

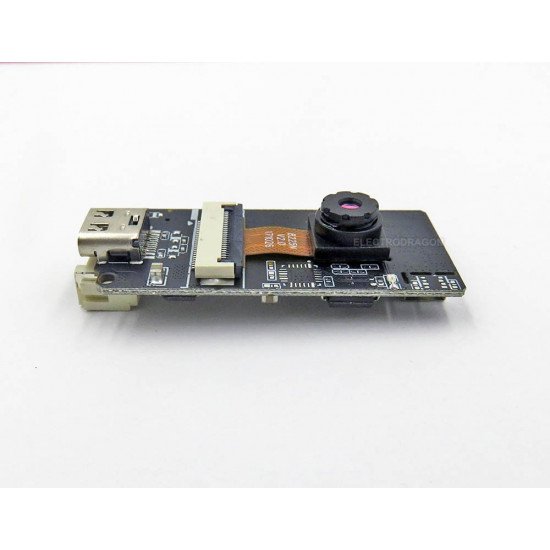

ESP32 Camera Module Development Board, ESP32CAM - OV2640

ESP32 Camera Module Development Board, ESP32CAM - OV2640
ESP32 Camera Module Development Board, ESP32CAM - OV2640
ESP32 Camera Module Development Board, ESP32CAM - OV2640
ESP32 Camera Module Development Board, ESP32CAM - OV2640
ESP32 Camera Module Development Board, ESP32CAM - OV2640
ESP32 Camera Module Development Board, ESP32CAM - OV2640
ESP32 Camera Module Development Board, ESP32CAM - OV2640
  • Stock: 8
  • Brand: Tiah
  • Model: DZD003223
  • Weight: 20.00g
5,500.00DA
Ex Tax: 5,500.00DA

Description

ESP32CAM is an image recognition development board. It features an ESP32 (4M Flash + 520K RAM) chip and 2-Megapixel camera (OV2640). It also supports image transmission via Wi-Fi and debugging through USB Type-C port.

The hardware comes with a preloaded software, programmed by ESP-IDF. The purpose of the pre-loaded software is to operate the Wi-Fi camera. The camera output image has a resolution of 600*800, since it's 2MP camera it's possible to optimize the software to output a bigger resolution of photos.

What can the software do?

  • Power the board via USB type-C or GROVE
  • Use your phone to Wi-Fi scan an AP name start with 'm5stack-' and click to connect this AP.
  • Open up web browser on your phone and visit 192.168.4.1
  • Then here comes the picture. Video is about 5-6 frames per seconds. not super fast.

Product Features

  • ESP32 specifications
  • CP2104 USB TTL
  • 2M image processor
  • 65° Field of View

Includes

  • 1x ESP32CAM

Specification

ResourcesParameter
Flash4MB
RAM520KB
Image SensorOV2640
Maximum resolution200w pixel
Transmission rateUXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps
Output formatYUV(422/420)/YCbCr422, RGB565/555, 8-bit compressed data
Net weight6g
Gross weight18g

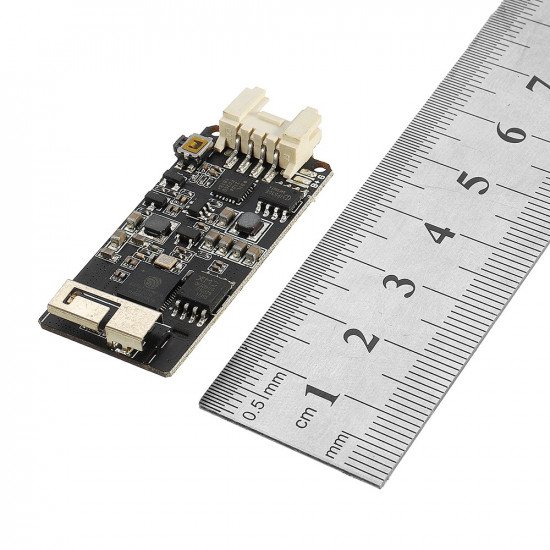

Product Size20.5*46.5*11.5mm
Package Size60*57*17mm
