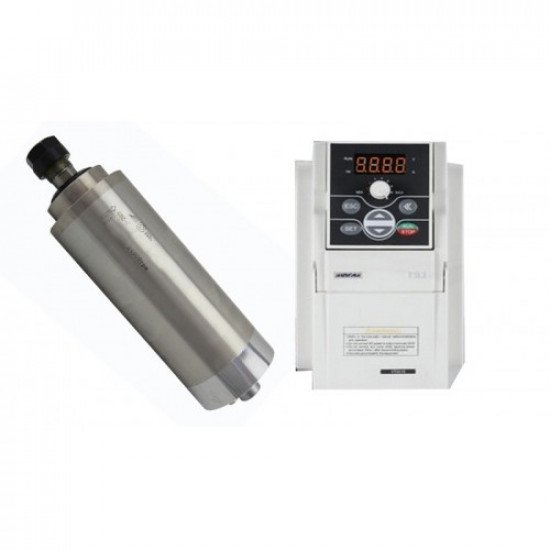

The Kit contain:
- Water Cooled 220V / 1.5KW Spindle Motor, 24000RPM, ER16 - GDZ80-1.5
- Inverter / speed controller 1.5Kw - E300-2S0015L
- Spindle Holder 80Cm
- Water Pump 80W
- Collet ER16 (3, 4, 5, 6, 7, 8, 9, 10 mm)

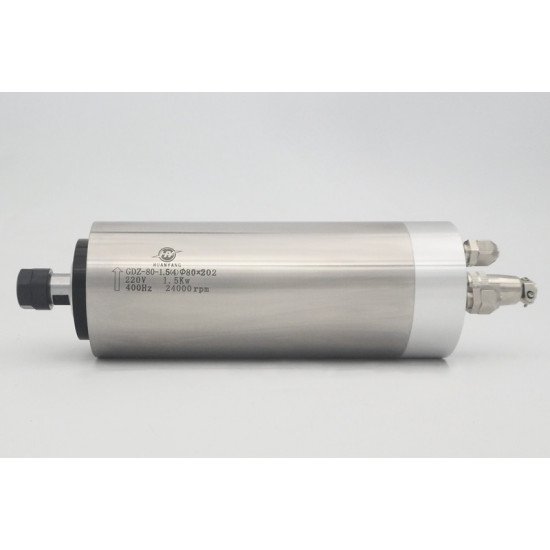

Motor Specifications :
- Model: GDZ80-1.5 Speed: 24000RPM
- Voltage: 220V Current: 6A
- Frequency: 400HZ Weight: 4KG
- Length: 188mm Shaft end link: ER16
- Cooling : water cooling Lubrication: grease
- Bearing Model: 2X7002CP4, 1X7000CP4 DT

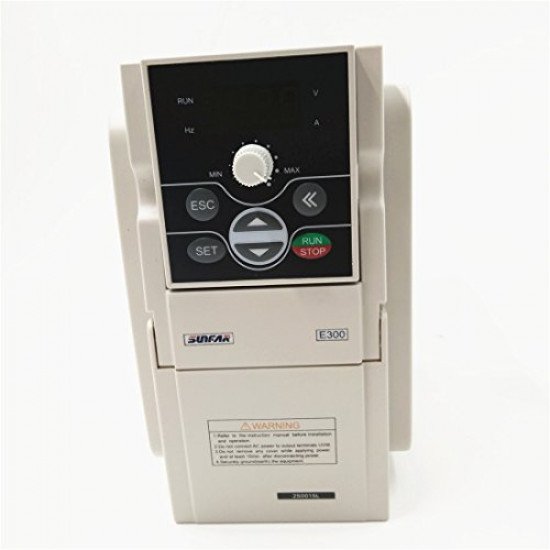

Inverter Specifications :
Input: 1-phase AC 220V ±20% 50/60Hz
1.User-defined V/F curve and torque boost function, support powerful cutting capability when processing
2.Output frequency up to 1000Hz, support the requirement of high-speed processing.
3.Highly adaptive to grid voltage, and can stand for ±20% fluctuation..
4.Particular self-adaptive control technology, allowing for automatic current and voltage limitation and under-voltage suppression during operation.
5.Configuration of RS485 communication interface, optional MODBUS protocol and SUNFAR self-defined protocol; with linkage synchronous control function, allowing for easily communicating inverters with PLC, industrial personal computers and other industrial personal equipments.
6.The panel supports hog plug, applicable for system integration for various applications.
Textile, food, transmission, ceramics, grinder, centrifugal machine, Engraving machine, etc.
