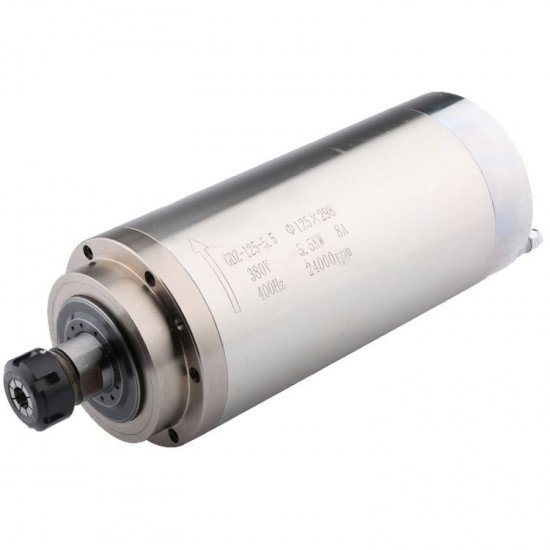

KIT Spindle Motor 380V / 5.5KW Water-Cooled, GDZ125-5.5

KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor  380V / 5.5KW Water-Cooled, GDZ125-5.5
KIT Spindle Motor 380V / 5.5KW Water-Cooled, GDZ125-5.5
  • Stock: 1
  • Brand: DEWO MOTOR
  • Model: DZD004138
  • Weight: 12,000.00g
  • MPN: GDZ125-5.5
235,000.00DA
Ex Tax: 235,000.00DA

The Kit Contain:

  • Water Cooled 380V - 5.5KW Spindle Motor, 24000RPM, ER25 - GDZ125-5.5
  • Inverter / speed controller 5.5KW
  • Spindle Holder 125Cm
  • Water Pump 95W
  • Collet ER25

Technical parameter:

Spindle type                               GDZ125-5.5
Diameter125mm
Speed24000rpm
Power5.5KW
Voltage380V/220V
Current10A/17A
Frequency400HZ
Joint of noseER25
Lubgrease
Coolwater cooling
Bearing type7007CP4*2+7205CP4*2
Weight24KG
Torque1.85Nm
ColletER25
Collet nut3.175mm,6mm,12.7mm



3.7KW VFD Inverter Specifications :

simphoenix e500 vfd manual

ModelE550-
Power (KW)5.5KW
Input Voltage(V)1-phase AC 220V ±20% 50/60Hz
Output Voltage(V)0~220v
Output Current(A)25A
Output Frequency (Hz)0~1000Hz
