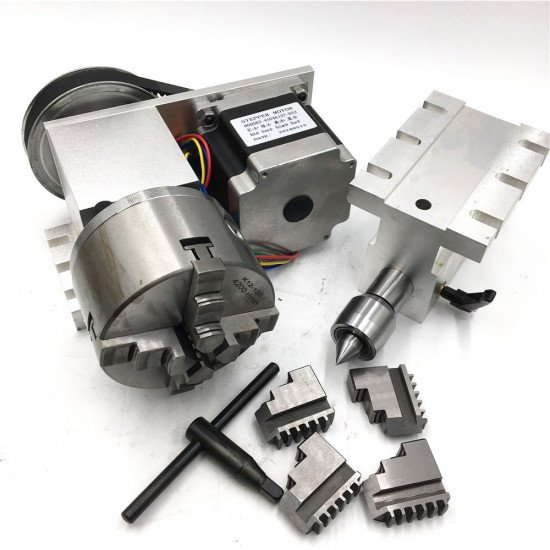

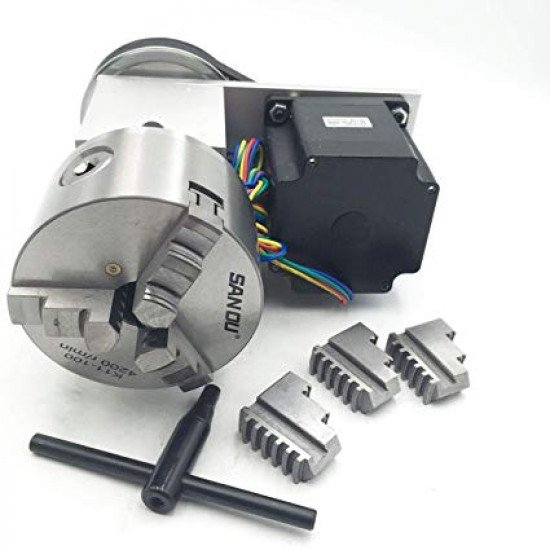

nema 34 CNC 4th axis 5M-3-100B+ tailstock

nema 34 CNC 4th axis 5M-3-100B+ tailstock
nema 34 CNC 4th axis 5M-3-100B+ tailstock
nema 34 CNC 4th axis 5M-3-100B+ tailstock
nema 34 CNC 4th axis 5M-3-100B+ tailstock
nema 34 CNC 4th axis 5M-3-100B+ tailstock
  • Stock: 1
  • Brand: DEWO MOTOR
  • Model: DZD002965
  • Weight: 9,000.00g
  • MPN: 5M-3-100B
90,000.00DA
Ex Tax: 90,000.00DA

5M-3-100A

  • Chuck type: K11-100mm 4 jaw centering chuck
  • Center height: 65mm
  • Angle: 0.6°/ step
  • Output shaft diameter: 30mm
  • Hollow inner diameter: 22mm
  • Reducing ratio: 3:1
  • Stepper motor: 2-phase Nema34 4.5Amps 45kg.cm holding torque
  • Accessories: Set of Anti-claw and wrenches
  • Dimension:210MM*210MM*115MM
  • Weight: 9.0KG

Tailstock

  • Center Height: 65mm
  • Stretch distance:50mm
  • Top tip: activity type
  • Axial locking wrench for tailstock
  • Net Weight:2.5kgs



Write a review

Please login or register to review

GRBL




Mach3




Tags: nema , 34 , cnc , 4th , axis , 5m-3-100b , tailstock
