  • Stock: 11
  • Brand: IteadStudio
  • Model: DZD000143
  • Weight: 5.00g
  • Dimensions: 2.90mm x 1.50mm x 1.20mm
500.00DA
Ex Tax: 500.00DA

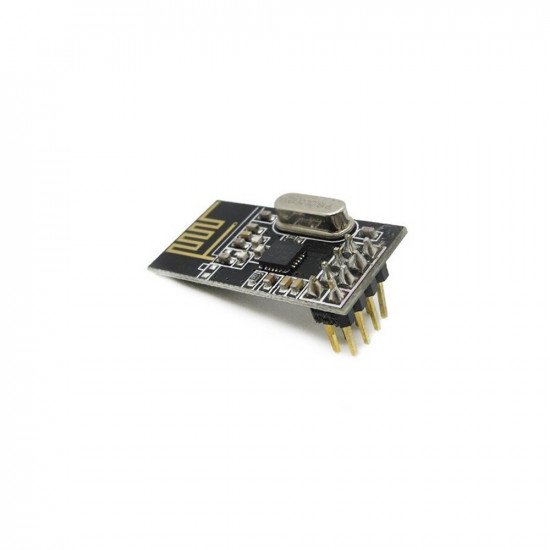

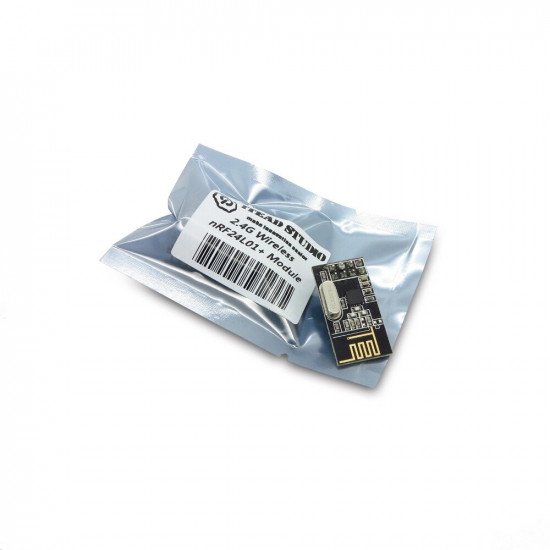

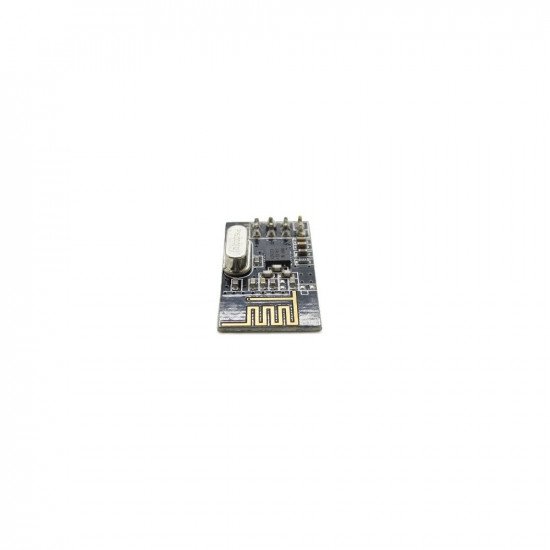

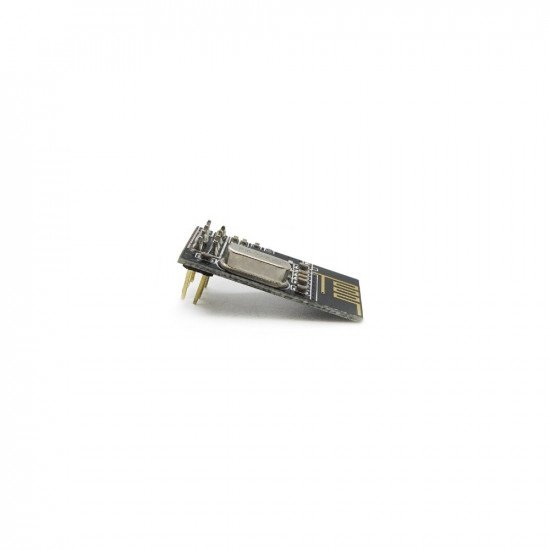

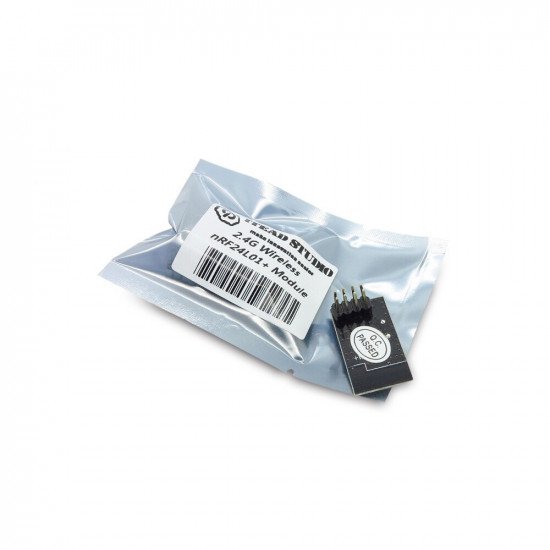

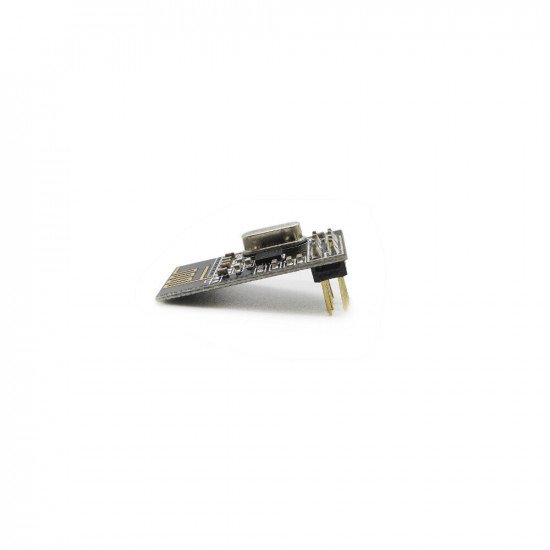

The nRF24L01 module is the latest in RF modules from SparkFun. This module uses the 2.4GHz transceiver from Nordic Semiconductor, the nRF24L01+. This transceiver IC operates in the 2.4GHz band and has many new features! Take all the coolness of the nRF2401A and add some extra pipelines, buffers, and an auto-retransmit feature - very nice!

Note: We now populate these boards with the nRF24L01+. The '+' version of the IC has improved range, sensitivity, and data rates. The command set is backward compatible with the original nRF24L01.

Features

  • Voltage: 3-3.6V (recommended 3.3V) V
  • Maximum output power: +20dBm
  • Emission mode current(peak): 115mA
  • Receive Mode Current(peak): 45mA
  • Power-down mode current: 4.2uA

nRF24Lo01
