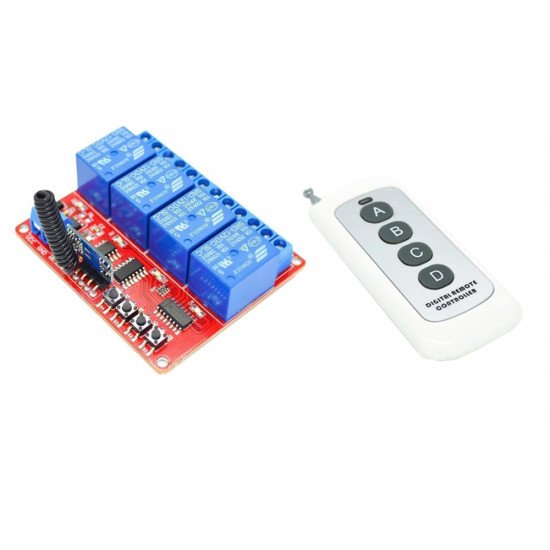

12V 4CH 1000m Remote Control Relay Switch - 433MHz

12V 4CH 1000m Remote Control Relay Switch - 433MHz
12V 4CH 1000m Remote Control Relay Switch - 433MHz
12V 4CH 1000m Remote Control Relay Switch - 433MHz
12V 4CH 1000m Remote Control Relay Switch - 433MHz
12V 4CH 1000m Remote Control Relay Switch - 433MHz
  • Stock: 8
  • Brand: Tiah
  • Model: DZD002600
  • Weight: 100.00g
3,900.00DA
Ex Tax: 3,900.00DA

Features:

  • Operating voltage: 11-12.5V (input) VCC: Connect the power supply positive GND: Connect the power supply negative
  • Operating current: about 180mA (relay pull state)
  • Static operating current: 8mA or so (relay release state)
  • Receiver size: Approx. 65x 56x23mm/ 2.56x 2.20x 0.87inch (with housing, housing with 3mm screw hole)
  • Scope of application: water pump, light bar, lamp, home appliances, machinery and equipment, mechanical switch, roll gate, shutter curtain, etc.
  • Module type: 433MHz learning wireless access module

Specification:

  • Material: FR4 Fiberglass Board
  • Size: Approx. 65x 56x 23mm / 2.56x 2.20x 0.87inch
  • Receiving distance: between 50-1000 meters (can through the wall)
  • Working mode: self-locking, jogging two kinds of work modules (four-way each road can be independently set to self-locking or jog)
  • Work instructions: D5 (power indicator), D1-D4 (relay switch indicator), D6 (learning indicator)
  • Output mode: normally opened (CK), common (COM), normally closed (CB) (Note: normally closed and common in the normal state is connected, so that the output of the module is used as a switch; The switch is often used when the closed end is usually not used, only the normally open and common)

- First, learning methods:

- Press the learning button S1, immediately release, immediately press and hold S1 (faster), learning light D6 flash 1, and then release the S1 key; hold the need to learn the remote control button, learning instructions Light flash 2, to prove the first road to study success

- Other three way to learn the same way, 2 Road 3 Road 4, respectively, corresponding to the keys S2, S3, S4;

- Second, the wireless function to clear the method:

- Power off state, hold down S1-S4 any one learning button, and then power, learning light flashing 4, the release button that the module 4-way all clear the success

- Third, Self-locking and jogging function conversion instructions (4-way each is set independently, the same way)

- Jog: power state, press and hold the learning button after the power, learning indicator D6 flash 2, the release button, this time set to jog output.

- Self-locking: power state, press the learning button after power, learning indicator D6 flash 3, the release button, this time set to self-locking lock output.
