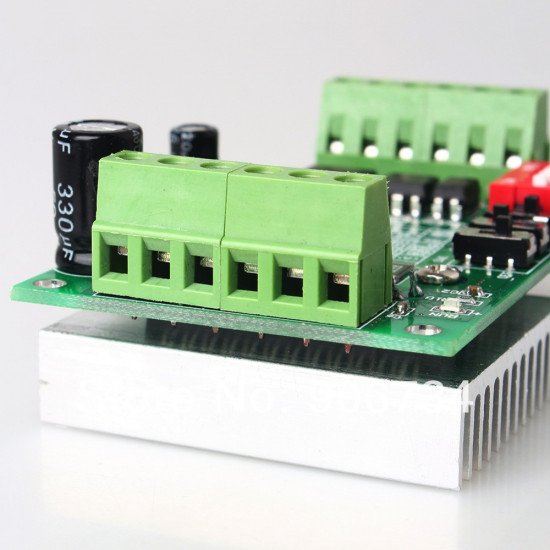

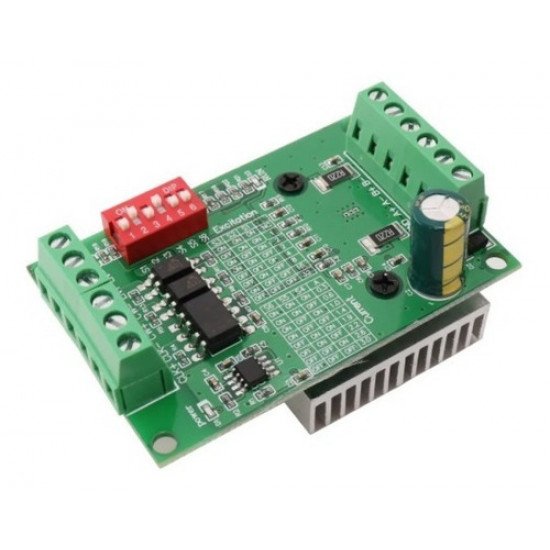

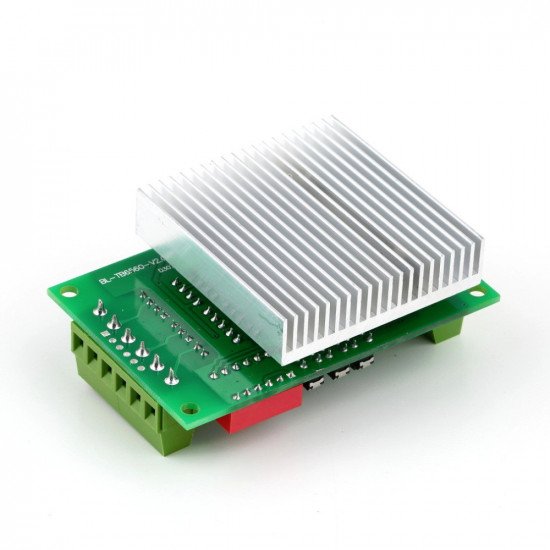

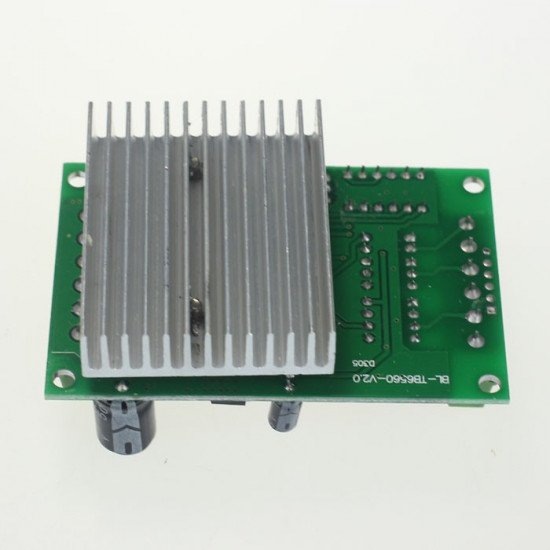

TB6560 3A Stepper Motor Driver Board Module

Description

• Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.
• 6N137 high-speed optical coupling, guarantee high speed without losing step.
• Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.
• Rated maximum output: ± 3A, peak 3.5A.
• For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
• Automatic half current function.
• Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.

Specifications:

• Working voltage:DC 10-35V
• Rated maximum output: ± 3A, peak 3.5A.
• Main color:Green
• Size:75 x 50 x 33mm

Package content:

• 1x TB6560 3A driver board
