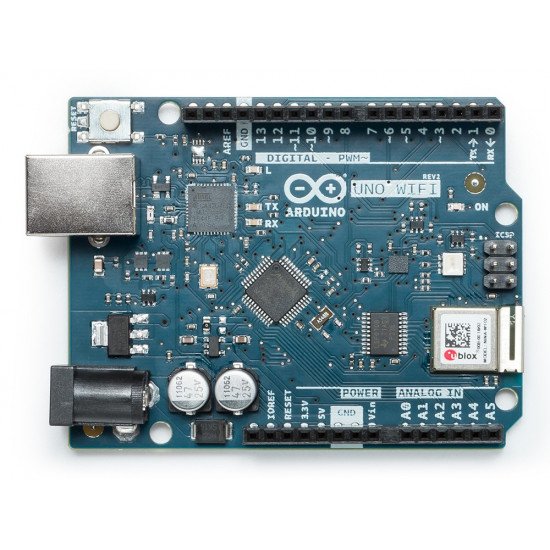

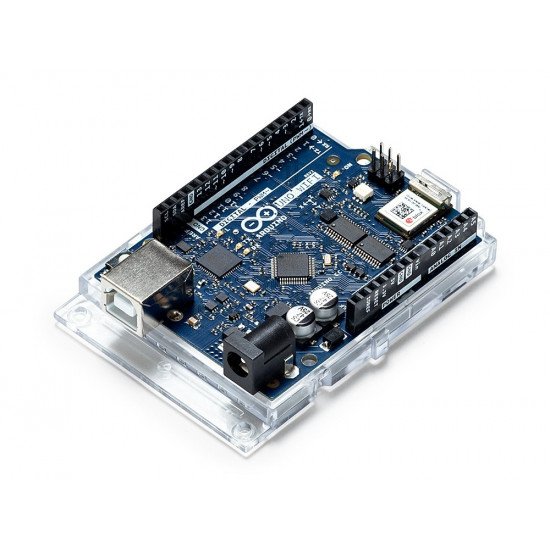

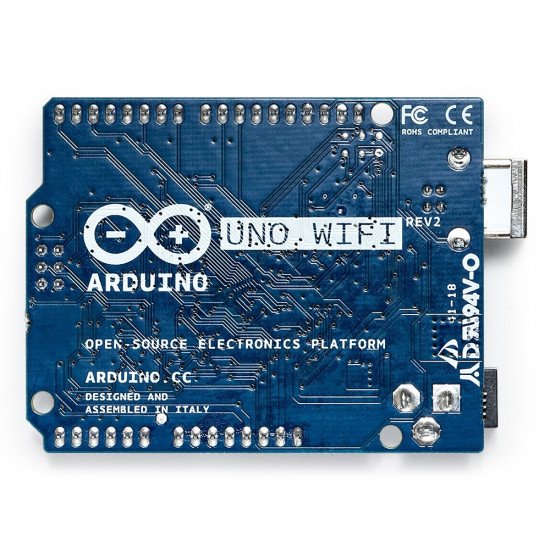

ARDUINO UNO Rev2 WiFi and BLE / Bluetooth® (Original)

ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
Out Of Stock
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth®  (Original)
ARDUINO UNO Rev2 WiFi and BLE / Bluetooth® (Original)
  • Stock: Out Of Stock
  • Brand: Arduino
  • Model: DZD001848
  • Weight: 44.00g
  • Dimensions: 68.50mm x 53.00mm x 0.00mm
  • MPN: A000133
10,500.00DA
Ex Tax: 10,500.00DA

Description :

The Arduino UNO WiFi Rev.2 is the easiest point of entry to basic IoT with the standard form factor of the UNO family. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the Arduino UNO WiFi Rev.2 is your one-stop-solution for many of the basic IoT application scenarios.



Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi / Bluetooth and some other enhancements. It incorporates the brand new ATmega4809 8-bit microcontroller from Microchip and has an onboard IMU (Inertial Measurement Unit) LSM6DS3TR.



The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point. It is the u-blox NINA-W102 and (here) you find the datasheet.



The Arduino UNO WiFi Rev.2 has 14 digital input/output pins—5 can be used as PWM outputs—6 analog inputs, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter or battery to get started.



Compatibility



This board has the Microchip ATmega4809 microcontroller, but thanks to the compatibility layer included in the core, you can run all the sketches made for the UNO's ATmega328P microconntroller on the ATmega4809. You can find more information about the usage of this mode in the Getting Started page of the Arduino UNO WiFi Rev.2



Bluetooth® and BLE



The communications chipset on the Arduino UNO WiFi Rev.2  can be both a BLE and Bluetooth® client and host device. Something pretty unique in the world of microcontroller platforms. If you want to see how easy it is to create a Bluetooth® central or a peripheral device, explore the examples at our ArduinoBLE library.



We Make it Open for you to Hack Along



The Arduino UNO WiFi Rev.2 is a dual processor device that invites for experimentation. Hacking the WiFiNINA module allows you to, for example, make use of both WiFi and BLE / Bluetooth® at once on the board. Yet another possibility is having a super-lightweight version of linux running on the module, while the main microcontroller controls low level devices like motors, or screens. These experimental techniques, require advanced hacking on your side. They are possible via modifying the module's firmware that you can find at our github repositories.



BEWARE: this kind of hacking breaks the certification of your WiFiNINA module, do it at your own risk.

Specifications :



MicrocontrollerATmega4809 (datasheet)
Operating Voltage5V
Input Voltage (recommended)7 - 12V
Digital I/O Pins14 — 5 Provide PWM Output
PWM Digital I/O Pins5
Analog Input Pins6
DC Current per I/O Pin20 mA
DC Current for 3.3V Pin50 mA
Flash Memory48 KB (ATmega4809)
SRAM6,144 Bytes (ATmega4809)
EEPROM256 Bytes (ATmega4809)
Clock Speed16 MHz
Radio moduleu-blox NINA-W102 (datasheet)
Secure ElementATECC608A (datasheet)
Inertial Measurement UnitLSM6DS3TR (datasheet)
LED_BUILTIN25
Length68.6 mm
Width53.4 mm
Weight25 g

OSH: Schematics



The UNO WIFi REV2 is open-source hardware! You can build your own board using the following files:

 EAGLE FILES IN .ZIPSCHEMATICS IN .PDF

Pinout Diagram





Download the full pinout diagram as PDF here.
